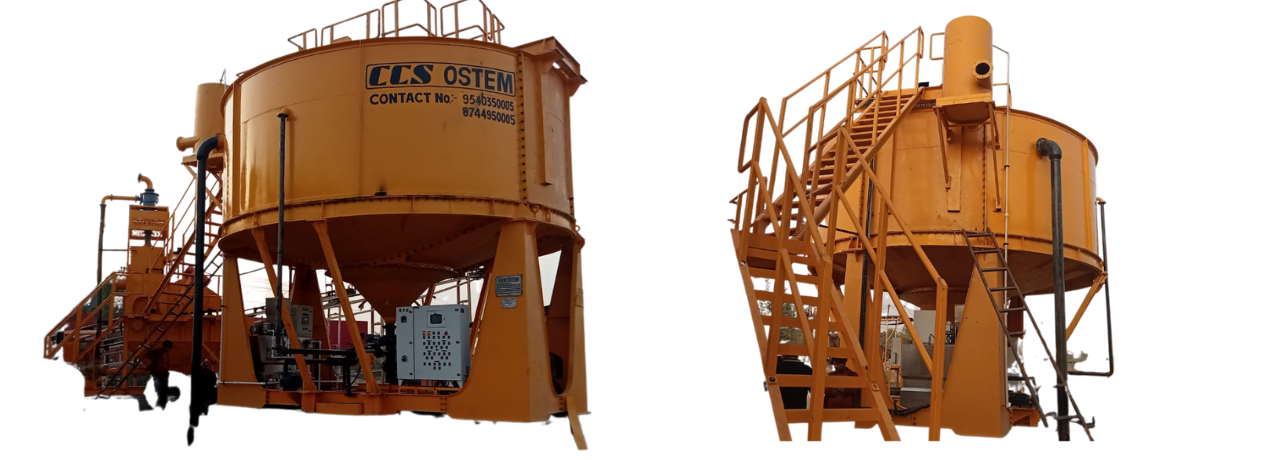

Thickner

GET THE FULL PRODUCT DETAILS

Fully Automatic (PLC Based) / Semi Automatic Controlling System.

Pressurized Water Flush Out System.

Electrically driven agitator allows for easy maintenance as well as reduced inventory for parts.

Bolt Constructed Structure.

Highest performance per unit area for depuration.

Low operating cost with minimum flocculent consumption.

Back wash flushing system.

Rotating & Lifting of Rake by Hydraulic System.

DESCRIPTION	UNIT	COT 6	COT 8	COT 10	COT 12
Diameter of Tank	m	6	8	10	12
Side Wall depth of Tank	mm	1900	2250	2500	3000
Volume of Tank	m³
Rake Arm Lift	mm (inch)	300 12	320 12.8	320 12.8	320 12.8
Rake Speed	rpm	0.13-0.30	0.13-0.30	0.13-0.30	0.13-0.30
Maximum Feed Rate	m³/hr	160	260	365	465
Rank Arm Power	kW (hp)	3.73 5	3.73 5	5.5 7.3	5.5 7.3
Slurry Pump Power	kW (hp)	9.3 12.4	9.3 12.4	11.1 14.8	15 20
